    When servicing air conditioning systems, having R-134a pressure-temperature (PT) charts is invaluable. These charts allow me to properly diagnose issues and ensure the system is operating as it should.

    In this article, I have included downloadable 134a PT charts covering a wide range of pressures and temperatures. The charts provide the saturation pressure and temperature data for R-134a refrigerant.

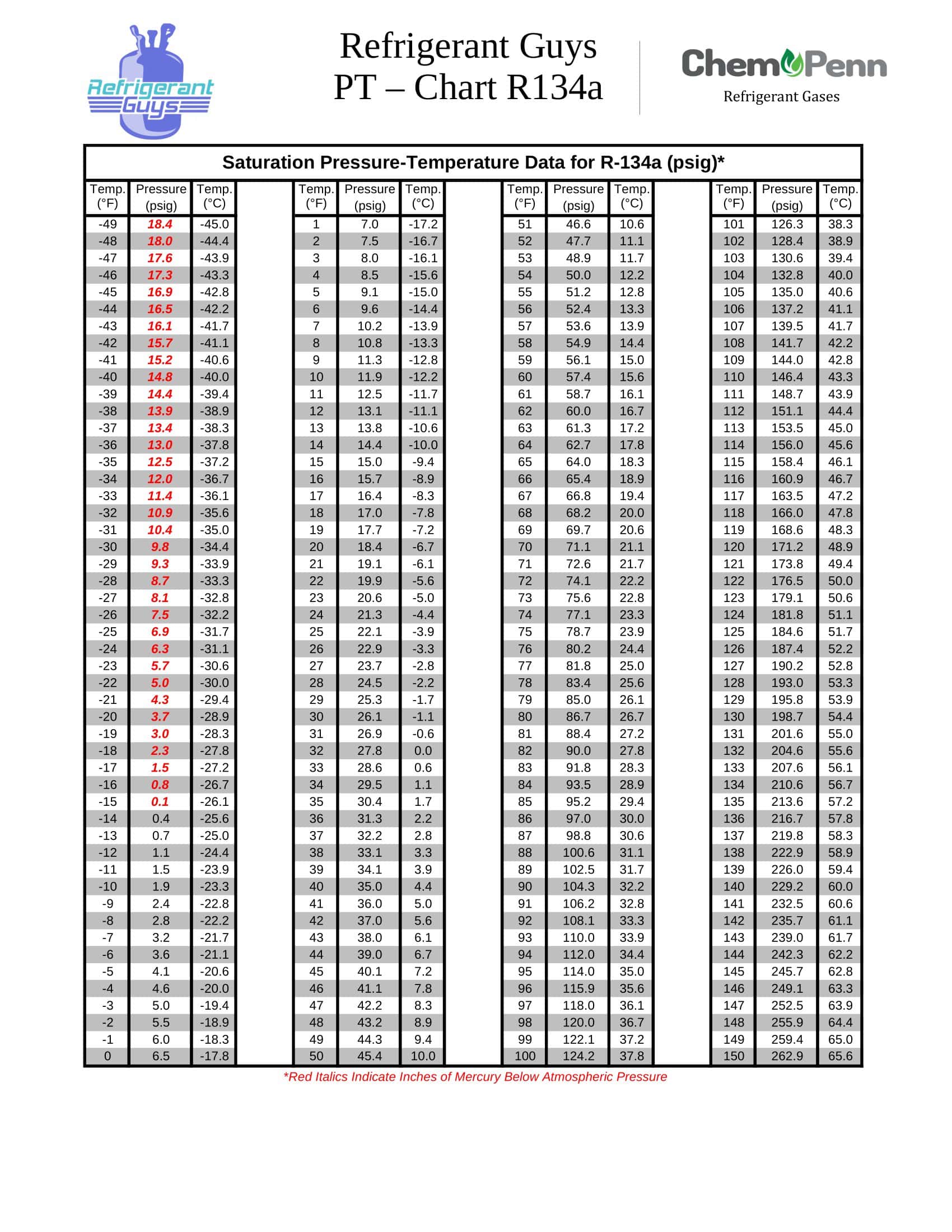

    134A PT Chart
    134A PT Chart

    I can use these R-134a PT charts during troubleshooting to quickly cross-reference my pressure gauge readings with the correct saturated temperature. This helps me pinpoint inconsistencies that indicate leaks, blockages, or other AC system problems.

    The charts also help me verify that system pressures align with the appropriate temperatures during normal operation. I can confirm the high and low side pressures match the expected PSI range on the chart for a given ambient temperature.

    Having access to these R-134a PT reference charts allows me to properly service and repair AC systems. I can leverage the data to optimize system performance and identify issues before they cause system failure.

    With the help of these downloadable PT charts, I can work confidently and accurately when dealing with R-134a air conditioning systems. They are an invaluable resource I can reference anytime I need to diagnose or verify system pressures.
